Description:

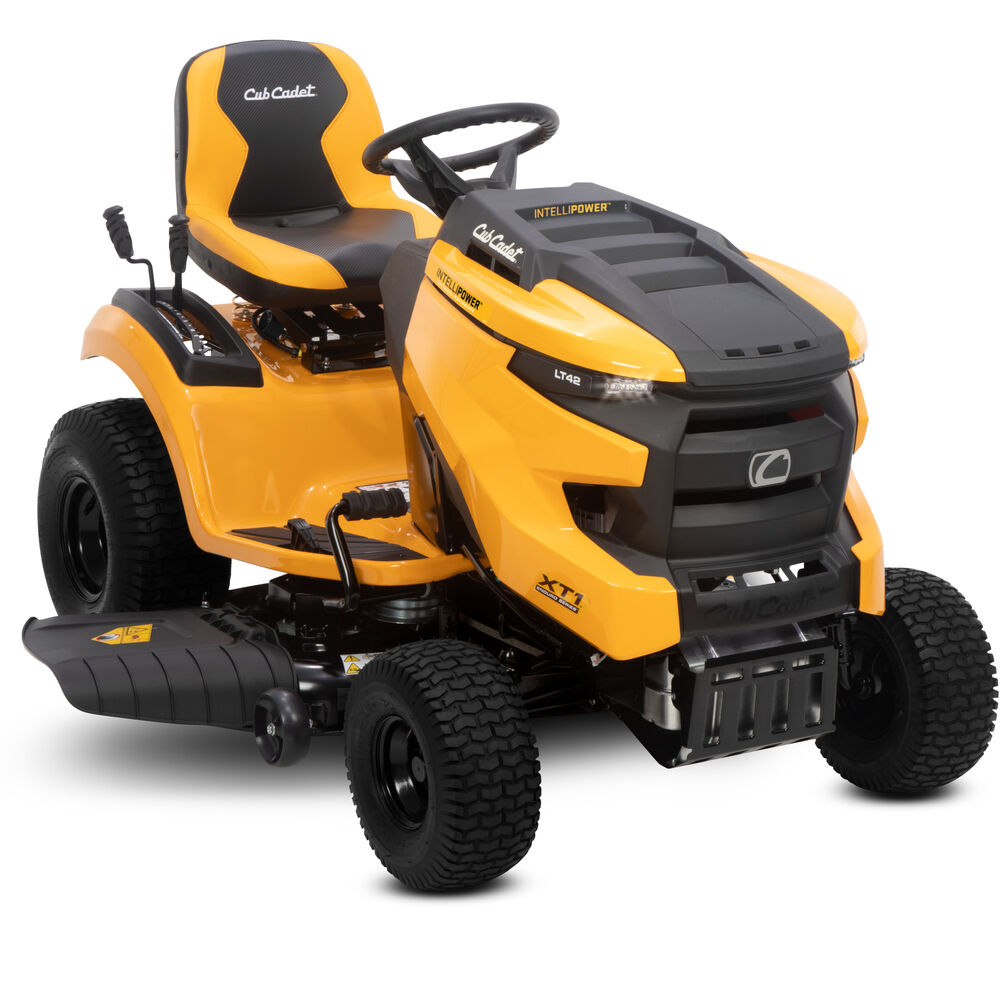

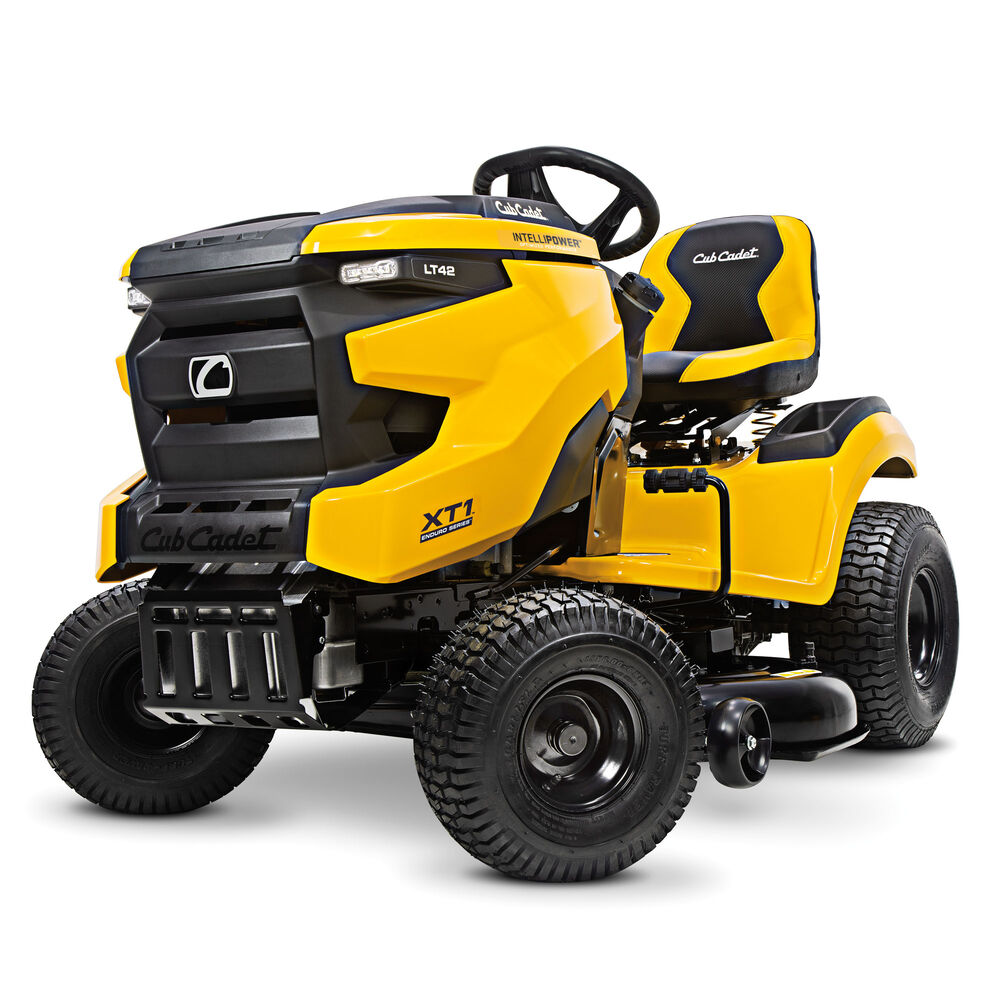

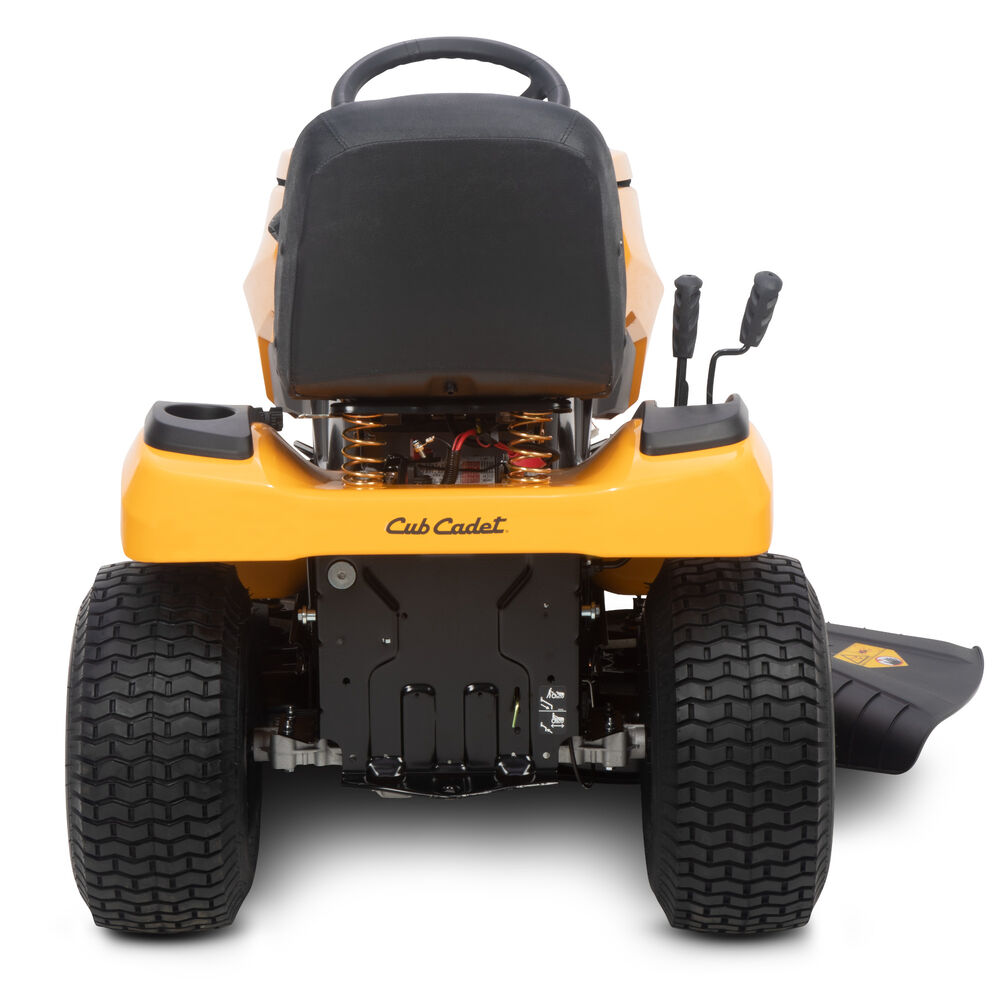

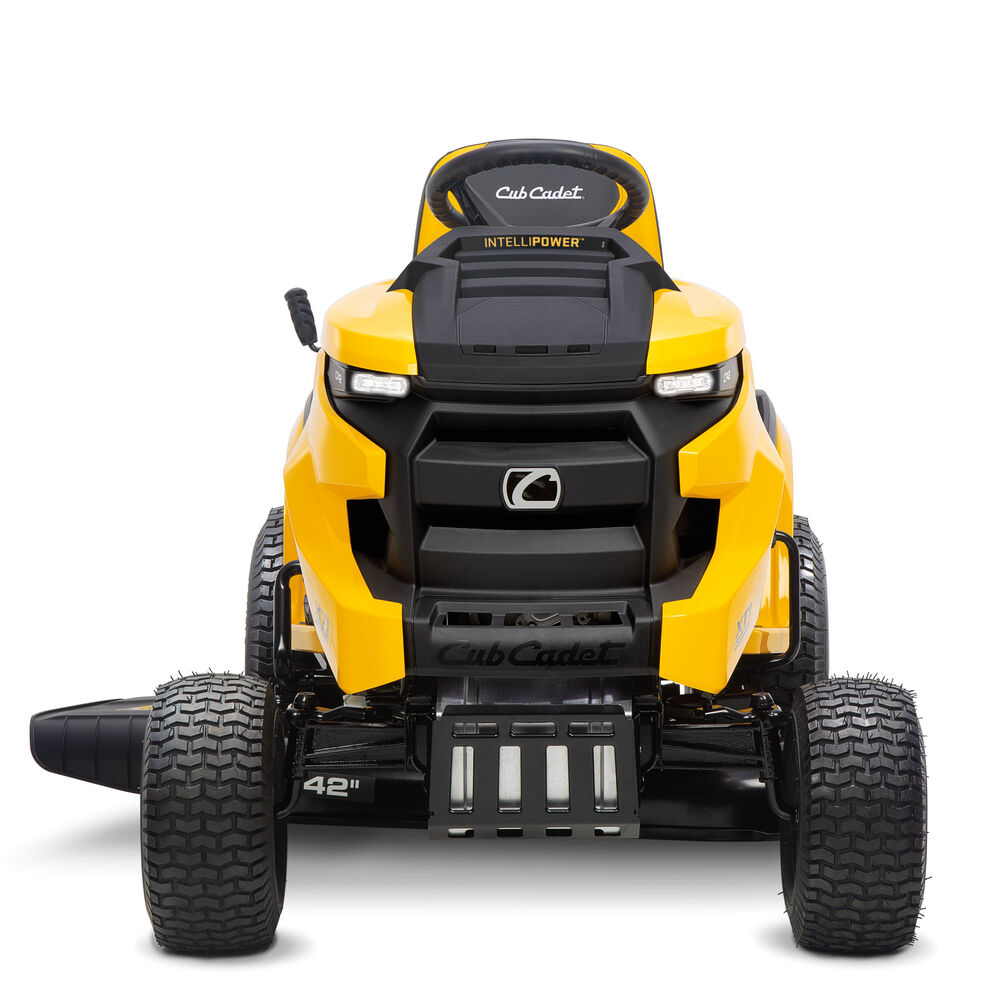

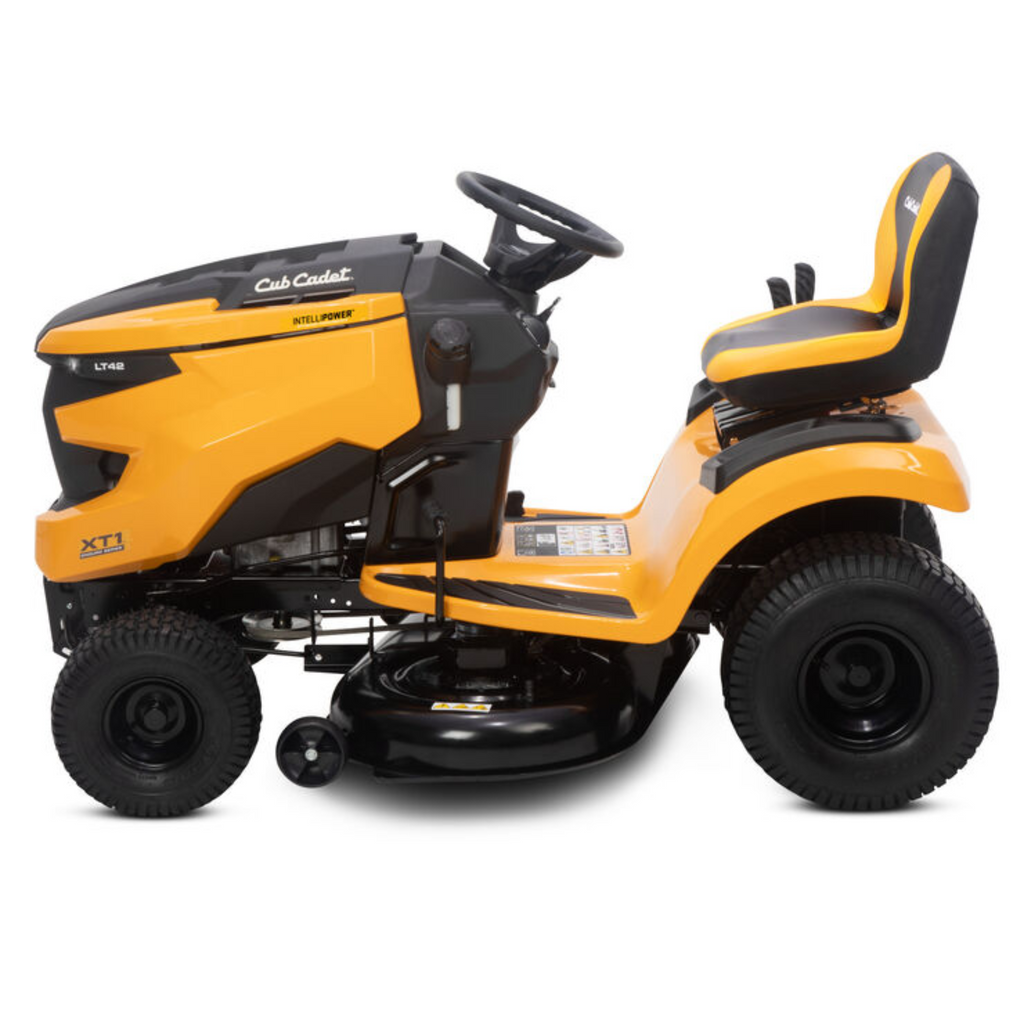

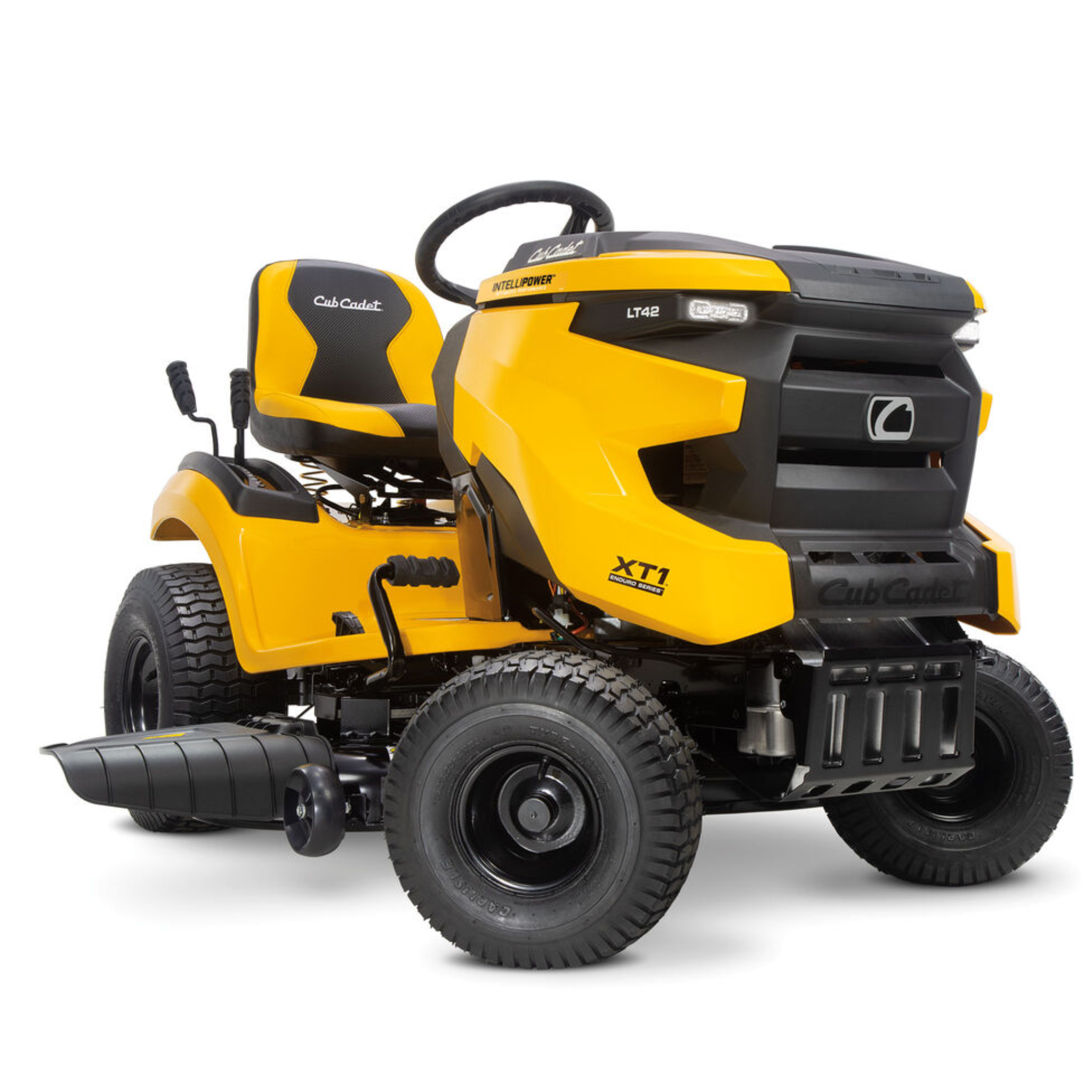

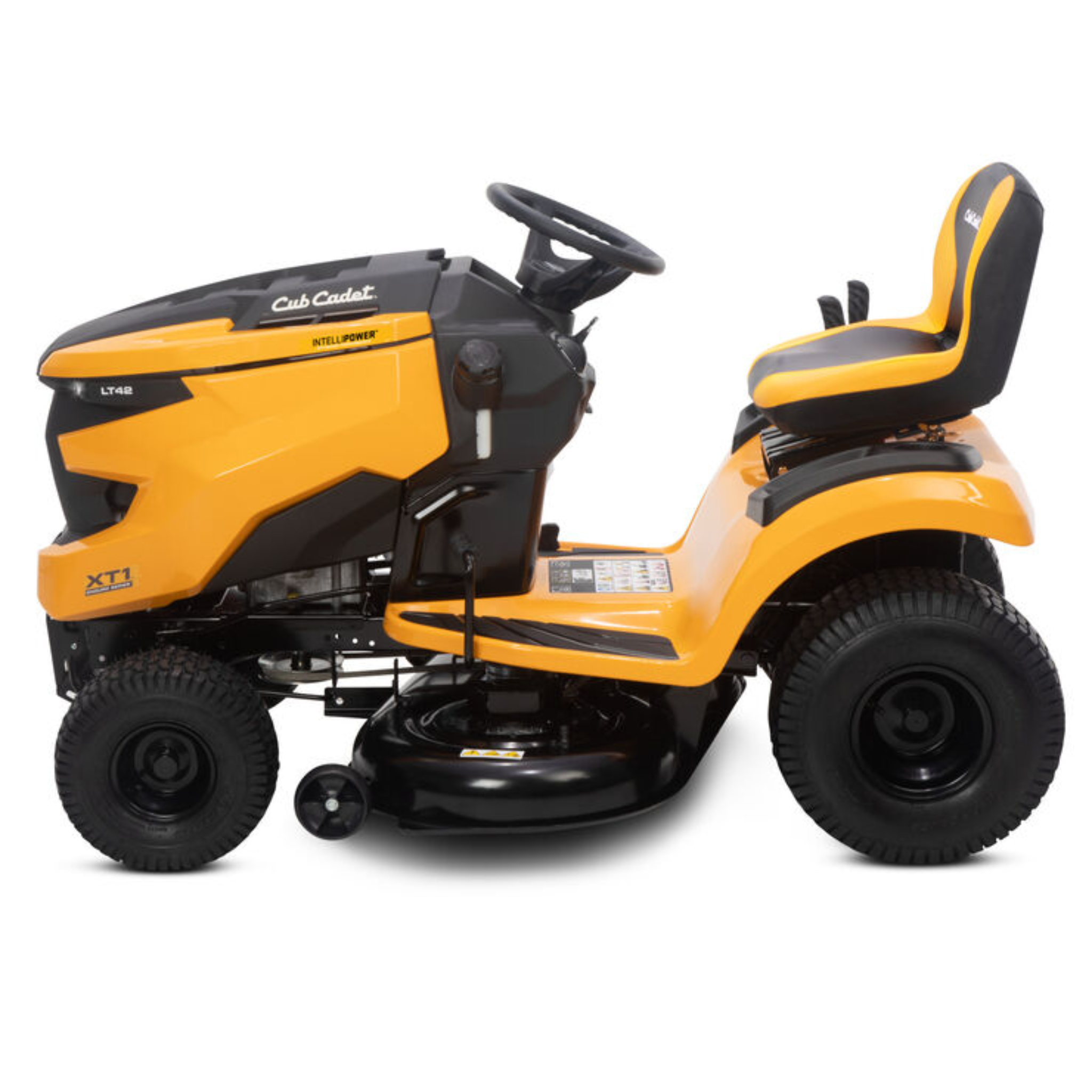

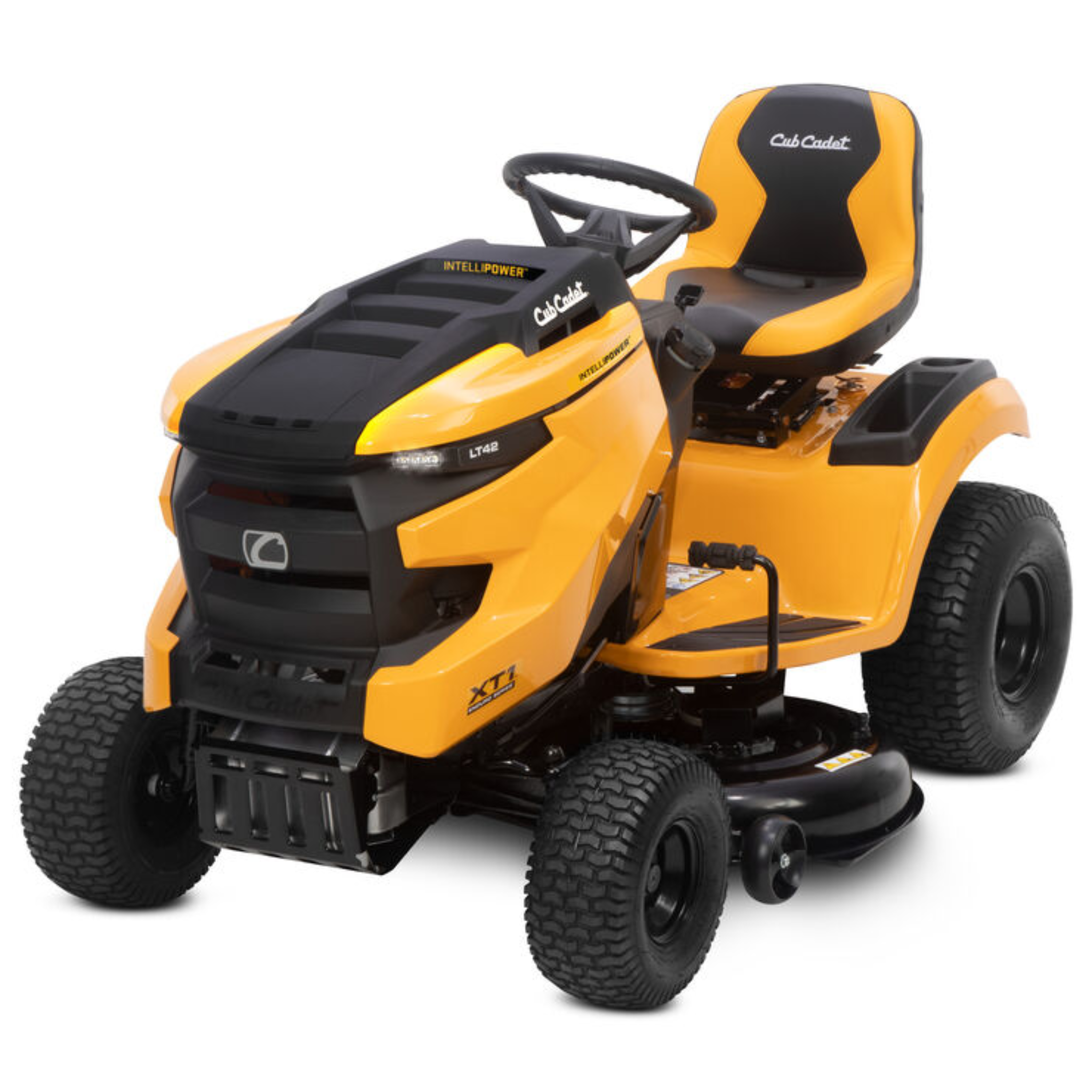

The Cub Cadet® Enduro Series XT1 LT42 Riding Lawn Mower has a 42-inch deck and a powerful 547cc IntelliPOWER® engine. It features a hydrostatic transmission for smooth operation. The IntelliPOWER engine gives you steady and reliable power, even in wet or thick grass. The mower also has a comfortable 15-inch high-back seat that can be adjusted for a better mowing experience.

Features:

• A 547cc Cub Cadet® engine equipped with IntelliPower® technology is designed to deliver reliable power.
• 42-in. stamped deck built with strong materials and an exceptional belt design while delivering a premium cut.
• Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
• Lawn Tractor

Specification:

Engine

• Engine Brand: Cub Cadet®
• Model Number: AX90H0
• Displacement: 547cc
• Cylinders: Single
• Starter Type: Electric
• Fuel Capacity: 3.0 gal. US (11.36 L)
• Oil Capacity: 1.8 qts. US (1.70 L)
• Lubrication: Fully pressurized
• Fuel Delivery: Carburetor
• Governor: Electronic
• Choke: Choke-a-matic
• Air Filter: Single element
• Oil Filter: Yes
• Charging System: 15 amp regulated
• Fuel Gauge: No

Battery

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Tuff Torq® TL-200
• Drive Type: Hydrostatic
• Control: Foot Pedal
• Housing: Aluminum
• Forward Speed: 5.5 MPH / 8.6 km/h
• Reverse Speed: 3 MPH / 4.8 km/h
• Rear Axle: ¾"
• Differential Lock: No

Cutting Deck

• Deck Width: 42 in
• Deck Type: Stamped
• Deck Material: 13-gauge steel
• Blades: 2
• Deck Lift: Manual
• Cutting Height Range: 1" - 4"
• Deck Positions: 12
• Deck Engagement (PTO): Manual
• Deck Wash Port: Yes
• Anti-Scalping Wheels: 2

Chassis

• Frame: Robotically welded
• Turning Radius: 16"
• Bumper: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: Cast iron

Controls & Comfort

• Cruise Control: Yes
• Brakes: Disc
• Seat: 15" high-back
• Armrests: No
• Seat Adjustment: Lever
• Floor Mats: Rubber

Wheels

• Bearing Type: Poly Bushing
• Rear Tires: 20" x 8" - 8”
• Front Tires: 15" x 6" - 6"
• Tread Type: Turf Saver

Additional Features

• Series: XT1® Enduro Series™
• Hour Meter: Available Separately
• Mulch Kit: Available Separately
• Headlights: Dual LED
• Cup Holder: Yes
• Operator Presence System: Yes

Model Info

• Model Number: 13A6A9TS010

Warranty

• Residential Warranty: 3-Year Unlimited Hours
• Frame Warranty: 5-Year Unlimited Hours
• Front Axle Warranty: 5-Year Unlimited Hours
• Deck Shell Warranty: 3-Year Unlimited Hours
• Commercial Warranty: Not Applicable
